Our Products > Angular Contact Ball Bearings

High Precision Spindle Bearings with Spacer Ball (rolling ball guidance)
like Bearings of Type series 70, 72 and 73 (double row). Long lifetime through high precision bearings. This configuration provides a slight self-aligning preload; consequently, the balls remain under equal preload. These Bearings carry both radial and axial loads and provide spherical contact of the balls (DF).

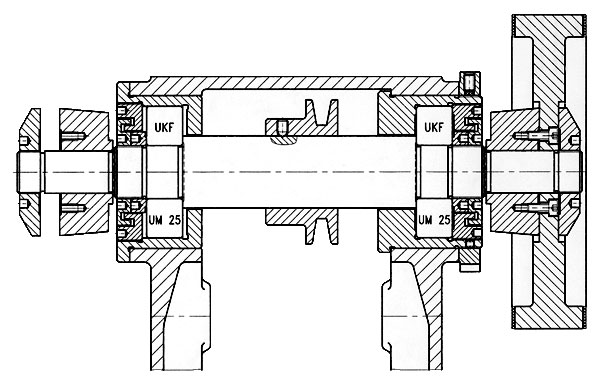

Example

UKF Spindle Bearings with Spacer Ball (rolling ball guidance)

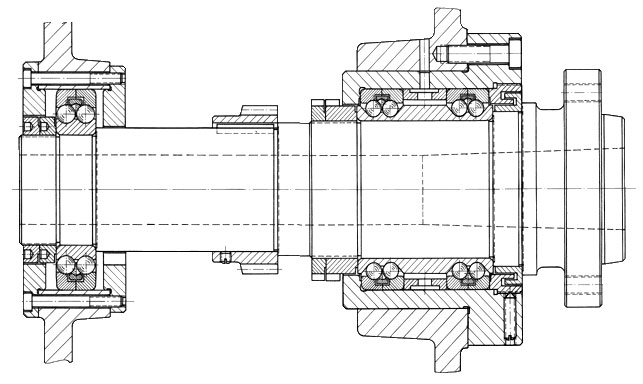

Spindle Bearings with Spacer Ball Example

Spindle Bearings with Spacer Ball

Spindle Bearings with Spacer Ball Example
Click on the image to enlarge them

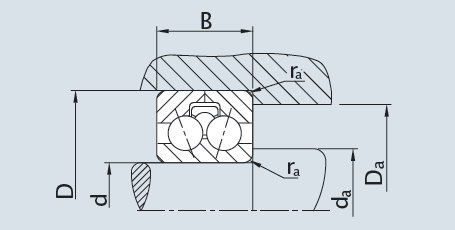

UKF Type series K (manufacturer's standard) and UK (dimensional series 20)




 UKF-Type Load Capacity Limbic-rqm Connecting dimensions
d D B C0 C nlimitmin-1 ra da Da m
mm N N grease lubrication oil-air lubrication mm kg
20 40 14 K 20 9600 13300 7000 8500 0,6 26 34,0 0,080
42 14 UK 20 10200 13800 7000 8500 0,6 26 36,0 0,095
25 47 15 K 25 13000 16900 6000 7000 0,6 33 41,0 0,118
30 55 16 K 30 17300 21100 5000 6000 0,6 37 48,0 0,168
35 60 17 K 35 20300 24400 4500 5500 0,6 42 53,0 0,200
62 17 UK 35 21300 25000 4500 5500 0,6 42 55,0 0,220
40 67 18 K 40 24700 28400 4000 5000 0,6 48,0 59,0 0,225
68 18 UK 40 24700 28400 4000 5000 0,6 48,0 60,0 0,270
45 72 19 K 45 27000 29900 3500 4500 0,6 53,0 64,0 0,290
75 19 UK 45 29500 33100 3500 4500 0,6 53,0 67,0 0,335
50 80 20 K 50 32400 34600 3200 3800 0,6 58,0 72,0 0,380
55 85 21 K 55 35000 36000 3000 3600 0,8 65,0 75,0 0,435
90 22 UK 55 41500 43200 3000 3600 0,8 65,0 80,0 0,550
60 92 22 K 60 43500 44200 2800 3400 0,8 70,0 82,0 0,510
95 22 UK 60 46500 48000 2800 3400 1,0 70,0 85,0 0,585
65 100 23 K 65 50500 50000 2500 3000 1,0 75,0 90,0 0,655
70 105 24 K 70 52500 50800 2300 2800 1,0 80,0 95,0 0,720
110 24 UK 70 62500 60600 2300 2800 1,0 80,0 100,0 0,840
75 110 25 K 75 56500 52200 2200 2600 1,0 85,0 100,0 0,860
115 24 UK 75 64800 61800 2200 2600 1,0 85,0 105,0 0,895
80 120 26 K 80 67000 62400 2100 2500 1,0 92 108,0 1,000
125 27 UK 80 69500 63600 2100 2500 1,0 92 113,0 1,210
85 125 28 K 85 72000 64800 2000 2400 1,0 97 113,0 1,165
130 27 UK 85 72000 64800 2000 2400 1,0 97 118,0 1,310
90 135 30 K 90 89000 80400 1800 2200 1,0 102,0 123,0 1,495
140 30 UK 90 92000 82100 1800 2200 1,0 102,0 128,0 1,610
95 140 32 K 95 89000 79200 1700 2000 1,3 109,0 126,0 1,665
145 30 UK 95 92000 81600 1700 2000 1,3 109,0 131,0 1,710
100 150 34 K 100 109000 98400 1600 1900 1,3 114 136,0 2,080
105 160 36 K 105 127000 113000 1500 1800 1,3 119 146,0 2,590
110 170 38 K 110 136000 120000 1300 1600 1,5 124 156,0 3,150
115 175 39 K 115 141000 121000 1250 1500 1,5 129 161,0 3,345
120 180 40 K 120 146000 124000 1200 1450 1,5 134,0 166,0 3,565
130 195 40 K 130 178000 148000 1100 1300 1,5 144,0 181,0 4,130
140 210 42 K 140 201000 164000 1000 1200 1,5 156 194,0 5,000
150 225 45 K 150 225000 182000 950 1150 1,8 166 209,0 6,180
160 235 48 K 160 241000 188000 850 1000 1,8 176 219,0 6,970
170 250 52 K 170 274000 214000 800 950 1,8 190 230,0 8,550
180 260 52 K 180 287000 215000 800 950 1,8 200,0 240,0 9,000
190 280 55 K 190 356000 271000 750 900 1,8 210,0 260,0 12,000
200 300 58 K 200 401000 306000 700 850 2,0 220,0 280,0 14,000

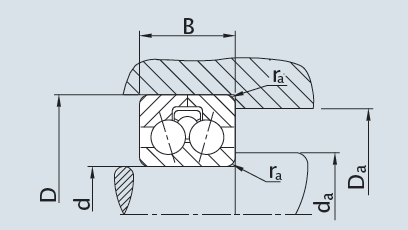

Type series UL (like Bearings of Series 72) and UM (like Bearings of Series 73)




 UKF-Type Load Capacity Limbic-rqm Connecting dimensions
d D B C0 C nlimitmin-1 ra da Da m
mm N N grease lubrication oil-air lubrication mm kg
15 35 11 UL 15 7800 11500 7000 8500 0,6 20 30 0,050
17 40 12 UL 17 12200 14400 6800 8000 0,6 21 34 0,080
47 14 UM 17 14200 19600 6100 7000 1,0 24 40 0,135
20 47 14 UL 20 14200 19600 6300 7500 0,6 26 41 0,115
52 15 UM 20 16500 22300 5700 7000 1,0 28 44 0,170
25 52 15 UL 25 17600 23400 5400 6500 0,6 32 46 0,145
62 17 UM 25 23000 29800 4900 6000 1,0 33 54 0,260
30 62 16 UL 30 23000 28700 4500 5500 0,6 37 55 0,230
72 19 UM 30 31100 38400 4100 5000 1,0 38 64 0,400
35 72 17 UL 35 29200 34400 4100 5000 0,6 43 64 0,320
80 21 UM 35 38500 46200 3700 4500 1,0 45 70 0,530
40 80 18 UL 40 34700 39500 3600 4300 0,6 48 72 0,425
90 23 UM 40 49500 57000 3200 3800 1,2 50 80 0,730
45 85 19 UL 45 40900 45000 3200 3800 0,6 53 77 0,485
100 25 UM 45 58500 66600 2800 3400 1,2 55 90 0,980
50 90 20 UL 50 45500 49600 2900 3500 0,6 58 82 0,540
110 27 UM 50 73000 79800 2600 3100 1,5 62 98 1,280
55 100 21 UL 55 52800 55800 2700 3200 0,8 65 90 0,695
120 29 UM 55 84500 91200 2400 2900 1,5 67 108 1,650
60 110 22 UL 60 61000 62200 2500 3000 0,8 70 100 0,930
130 31 UM 60 97000 103000 2300 2800 1,5 74 116 2,050
65 120 23 UL 65 69500 69000 2300 2800 0,8 75 110 1,150
140 33 UM 65 71000 116000 2000 2400 1,8 79 126 2,540
70 125 24 UL 70 76000 75000 2100 2500 0,8 80 115 1,250
150 35 UM 70 132000 134000 1900 2300 1,8 84 136 3,100
75 130 25 UL 75 83000 80400 2000 2400 0,8 85 120 1,400
160 37 UM 75 148000 148000 1800 2200 2,0 89 146 3,700
80 140 26 UL 80 93800 88700 1900 2300 1,0 92 128 1,740
170 39 UM 80 165000 163000 1700 2100 2,0 96 154 4,440
85 150 28 UL 85 110000 102000 1800 2200 1,0 97 138 2,070
90 160 30 UL 90 126000 116000 1600 1900 1,3 102 148 2,610
95 170 32 UL 95 144000 131000 1500 1800 1,3 109 156 3,200
100 180 34 UL 100 157000 143000 1400 1700 1,3 114 166 3,880
105 190 36 UL 105 176000 148000 1300 1600 1,5 119 176 4,000
110 200 38 UL 110 186000 167000 1200 1400 1,5 124 186 5,000
120 215 40 UL 120 219000 193000 1000 1200 1,5 134 201 6,400


Bearing Cartridges for Angular Contact Bearings
contain appropriate spacer rings, labyrinth ring seals, and cover plates, all factory assembled. Mounting flange provides simple mounting using metric cap screws into threaded holes.

  • Angular Contact Bearings
  • with Anti-Friction cages. Set of 4 rows,
  • preloaded, sealed, ready for installation.,
  • Type Series LK
    • 2 x 2 face-to-face contact flanged sleeve
  • Type Series PLK
    • 2 x 2 face-to-face contact sleeve with shoulder


Bearing Cartridges 2x2 raceways
Spacer Balls instead of a rigid cage
bore ø Type Series LK with flange Type Series PLK with shoulder
d D D1 L L1 D D1 L L1
25 62 85 60 40 55 60 60 47
30 68 95 66 44 65 70 66 52
35 72 95 66 44 68 75 66 52
40 80 105 61 44 75 80 67 53
45 90 125 72 50 80 85 72 57
50 95 130 80 54 90 95 80 64
55 105 140 87 60 95 100 87 70
60 110 150 87 59 100 105 87 69
65 120 160 95 66 110 115 95 76
70 125 165 100 69 115 120 100 80
75 130 170 105 73 122 130 105 85
80 140 180 110 78 132 140 110 90
85 150 190 118 86 138 145 118 98
90 160 200 125 92 150 160 125 103
95 170 215 133 99 155 165 133 108
100 180 225 140 105 165 175 140 115
105 190 235 150 114 180 190 150 125
110 200 245 157 116 190 200 157 131
120 210 255 160 120 200 210 160 133
130 230 280 172 129 215 225 172 143
140 250 300 184 137 235 245 184 153
150 270 320 195 148 250 260 195 162
