Our Products > Spindle Cartridge

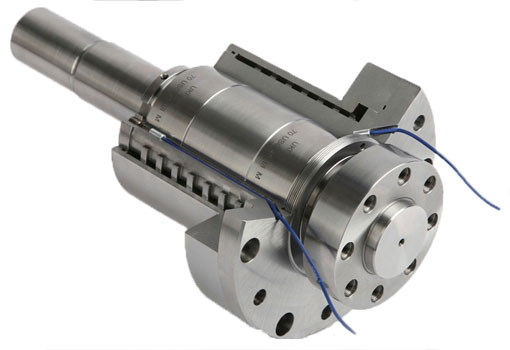

Bearing Cartridges for Spindle Bearings
Bearing Cartridges for Spindle Bearings contain appropriate spacer rings, labyrinth ring seals, and cover plates, all factory assembled. Mounting flange provides simple mounting using metric cap screws into threaded holes. Multiple row Spindle Bearings, preloaded with seals in flanged sleeve, ready for installation.

  • Various Bearing Sets (DB-/TBT-/QBC-configuration)
  • Type Series LKS.., PLKS.., PLKHS..
  • Further options possible

Design Example
containing Sets of Spindle Bearings, preloaded, sealed with flanged sleeve or with shoulder

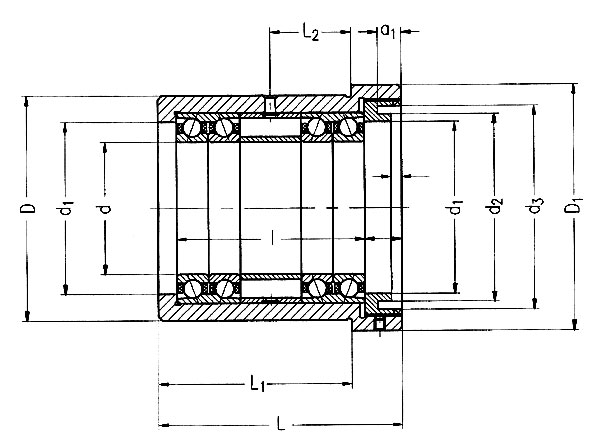

2 x 2 back-to-back (2DB)

2 : 1 back-to-back (TBT)

1 : 1 back-to-back (DB)
2 : 2 back-to-back (QBC)


Bearing Cartridges for Spindle Bearings: 2x2 Bearing Cartridges for Spindle Bearings for 2:1 Bearing Cartridges for Spindle Bearings for 1:1/2:2

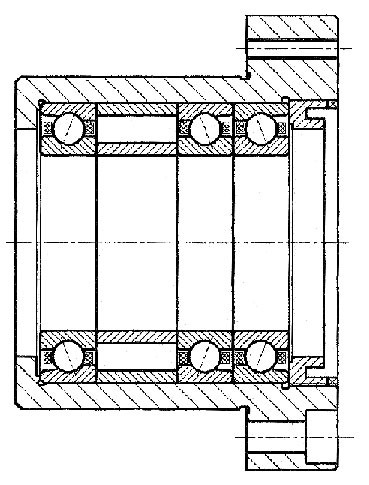

  Bearing Cartridges for Spindle Bearings for 2:1

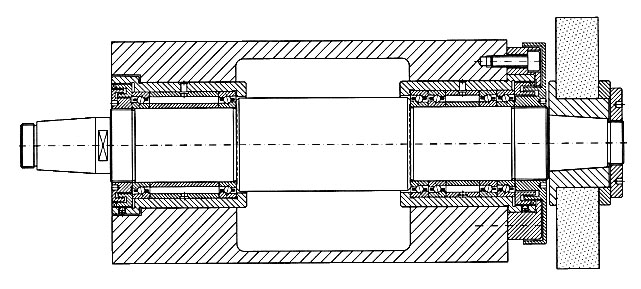

  Design Example Typ PLKHS

Bearing Cartridges with variety of possible Bearing Arrangements.
designed for
higher load capacity
designed for
smaller dimensions to save space
designed for
higher speed

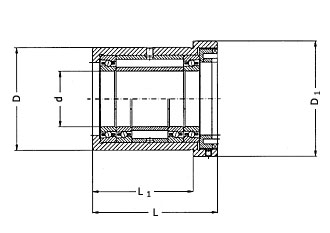

d D D1 L L1 D D1 L L1 D D1 L L1
25 62 85 70,0 50,0 50 57 70,0 56,0 50 57 70,0 56,0
30 68 95 75,5 53,5 55 62 75,5 60,0 55 62 75,5 60,0
35 72 95 79,5 57,5 65 73 79,5 64,0 65 73 79,5 64,0
40 80 105 84,5 61,5 72 80 84,5 69,0 72 80 84,5 69,0
45 90 125 89,0 67,0 78 86 89,0 73,0 78 86 89,0 73,0
50 95 130 92,0 66,0 85 93 92,0 73,0 85 93 92,0 73,0
55 105 140 101,0 74,0 90 98 101,0 81,0 90 98 101,0 81,0
60 110 150 101,0 73,0 95 103 101,0 81,0 95 103 101,0 81,0
65 120 160 104,0 75,0 100 108 104,0 81,0 100 108 104,0 81,0
70 125 165 112,0 81,0 110 118 112,0 89,0 110 118 112,0 89,0
75 130 170 112,0 80,0 115 123 112,0 89,0 115 123 112,0 89,0
80 140 180 120,0 88,0 120 128 120,0 96,0 120 128 120,0 96,0
85 150 190 121,0 89,0 130 138 121,0 97,0 130 138 121,0 97,0
90 160 200 128,0 95,0 140 150 128,0 104,0 140 150 128,0 104,0
100 180 225 131,0 96,0 155 165 131,0 106,0 155 165 131,0 106,0
110 200 245 150,0 109,0 165 175 150,0 123,0 165 175 150,0 123,0
120 210 255 148,0 108,0 180 190 148,0 121,0 180 190 148,0 121,0
130 230 280 170,0 127,0 195 205 170,0 141,0 195 205 170,0 141,0
140 250 300 173,0 126,0 205 215 173,0 141,0 205 215 173,0 141,0
150 270 320 182,0 135,0 225 235 182,0 149,0 225 235 182,0 149,0
