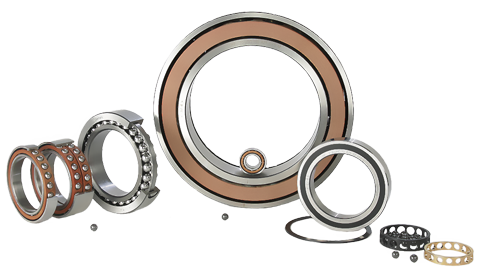

Spindle Bearings
Bearing Cartridges for Spindle Bearings contain appropriate spacer rings, labyrinth ring seals, and cover plates, all factory assembled. Mounting flange provides simple mounting using metric cap screws into threaded holes. Multiple row Spindle Bearings, preloaded with seals in flanged sleeve, ready for installation.

• Spindle Bearings
• Hybrid-Spindle Bearings
• Hybrid-High Speed Spindle Bearings

• Spindle Cartridges


Ball Screw Support Bearings

• Ball Screw Support Bearings double row
• Type series GSX
• Cover DG
• One-part Outer Ring, divided Inner Ring
• Angle of Contact 60º

• Preloaded, self-contain

• Complete with seals, lifetime lubrication

• Precision: axial runout 2...2,5 µm

• aax. stiffness: 450...1250 N/µm

• Type Series GSX


and Cover Plates Series DG for M6/M8-screws DIN 912

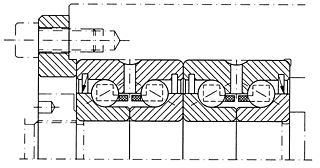

Design example 2 x GSX with cover DG

Floating Bearing
UKF Spindle Bearings for axially expanding shafts

• UKF Floating Bearing „AF. . .” (Axial Floating) with Ceramic Ball (Hybrid Bearings)
• Type series 70 AFSC single row, 70 AFDC double row

Construction Example

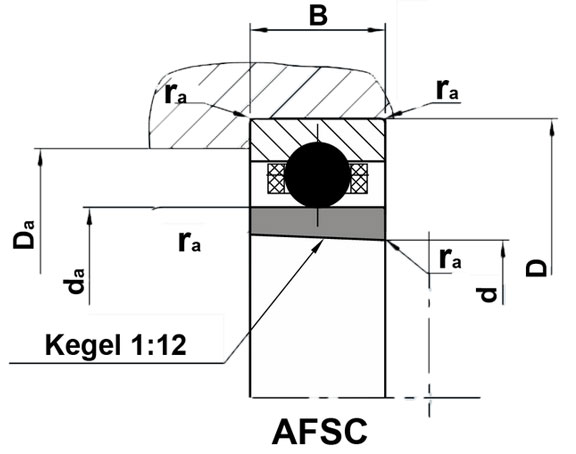

Example: Floating Bearing AFSC single row	Example: Floating Bearing AFDC double row

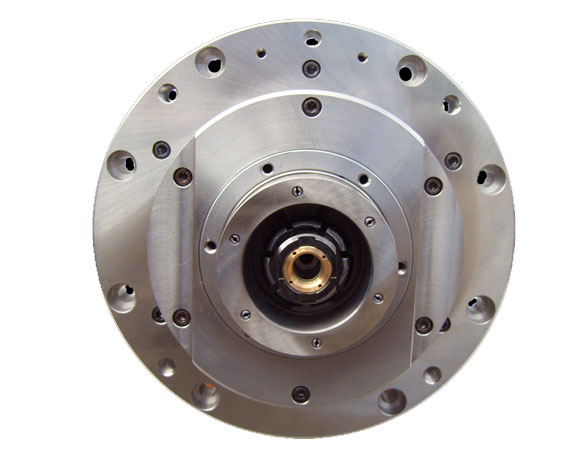

Spindel Units

• Belt-driven Spindle Units
• Spindle Units for Milling
• Spindle Units for Turning
• Spindle Units for Grinding
• High Frequency Motorized Spindle Units
  • Spindle Units for Milling
  • Spindle Units for Turning
  • Spindle Units for Ginding
  • Frequency Converter
  • Lubrications
  • Cooling Systems
• Machining Spindle with Gear Box

  • Frequency Converter
  • Lubrications
  • Cooling Systems
